Configure the system_private.config file

  1. Open
    Microsoft Notepad
     as an administrator.
  2. Click
    File
     >
    Open
    .
  3. Navigate to
    C:\Program Files\capnode
     and change the file selection from
    Text Documents (*.txt)
     to
    All Files (*.*)
    .
  4. Select the
    system_private.config
     file.
  5. Click
    Open
    .
  6. Verify the following items in the
    system_private.config
     file:
    1. The
      indexURL
       variable should be formatted similar to the following image. The base URL should be followed by “/syndication/”, then the device gateway protocol ID (for example, CAP_PA), the organization ID number, followed by "/capindex".
    2. The “#” at the beginning of a line in the
      system_private.config
       file is used to comment out an unused line. The “#” should be removed from a line to use the variable.
  7. Enter the proxy server and proxy port information you collected earlier in the proxyServer and proxyPort parameters.
    If the settings on the machine that you tested with is set for “Automatic” in the proxy settings, the settings for those two lines displays as follows:
    • proxyServer=none
    • proxyPort=8080
  8. Update the CapPostingTarget variables to reflect the correct URL using the same base URL as in the
    indexURL
     variable.

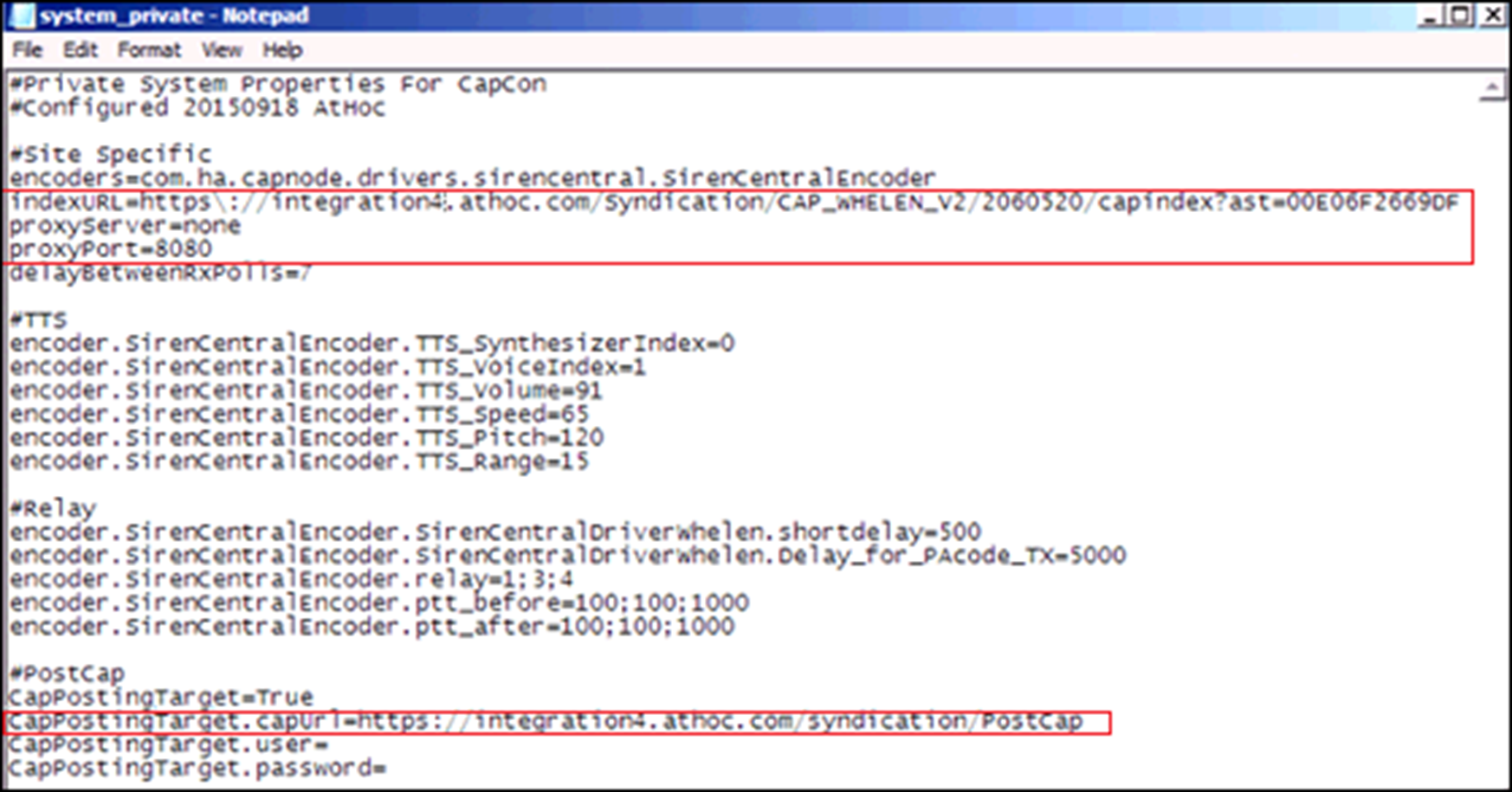

    The system private config file
  9. Click
    File
     >
    Save
    . Close the
    system_private.config
     file.
