Enable the Public Address System device

  1. In the navigation bar, click The Settings icon.
  2. In the
    Devices
     section, click
    Devices
    .
  3. On the
    Devices
     page, click the
    Mass Devices
     tab.
  4. Click
    Public Address System
    .
  5. On the
    Public Address System
     page, click
    Edit
    .
  6. In the

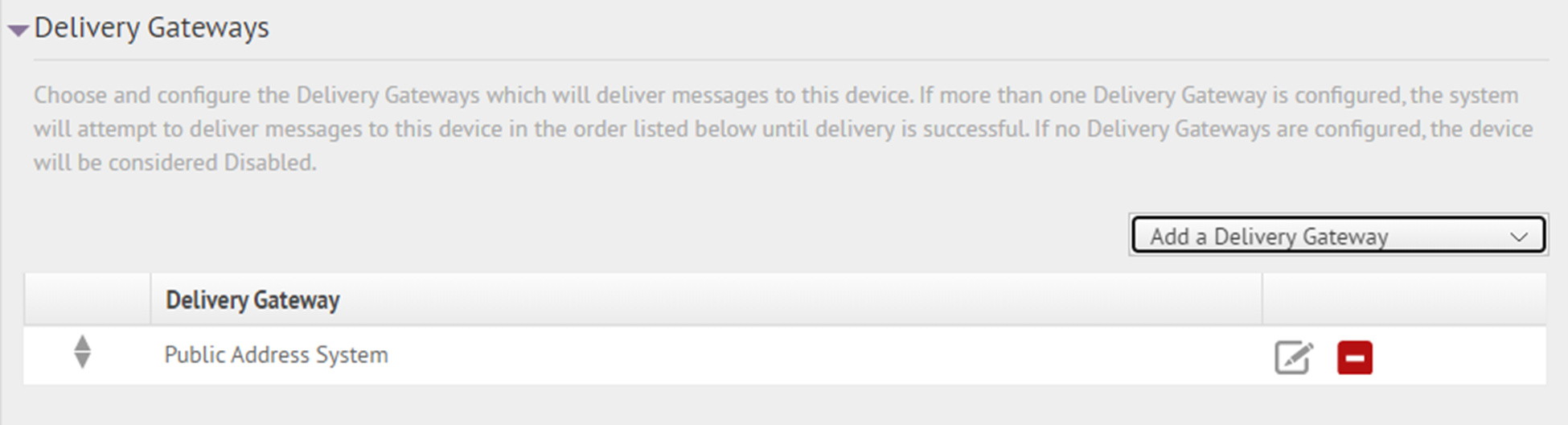

    Delivery Gateways
     section, click
    Add a Delivery Gateway
     >
    Public Address System
    .
    Add a delivery gateway
  7. In the
    Public Address System
     row, click The Edit icon.
  8. On the
    Configure Gateway
     window, check for XML code in the
    Configuration XML
     field. If the field is empty, copy and paste the following code into the field:
    <Configuration>
<CapParams>
    <GVSystemType>PA</GVSystemType>
    <AllMode>0</AllMode>
    <ZoneMode>0</ZoneMode>
    <KeyMode>4</KeyMode>
    <UnusedMode>0</UnusedMode>
    <DefaultAllCall>0</DefaultAllCall>
    <DefaultKeyActivationCode>0</DefaultKeyActivationCode>
    <NoPARequired>0</NoPARequired>
    <PARequired>1</PARequired>
    <PAWav>1</PAWav>
    <IsCancelable>false</IsCancelable>
    <ContentSource>GiantVoice</ContentSource>
    </CapParams>
</Configuration>
  9. Click
    Submit
    .
  10. Click
    Save
    .
  11. Click
    More Actions
     >
    Enable
    .
