Enable the Siemens Indoor Fire Panel device

  1. In the navigation bar, click Settings icon.
  2. In the
    Devices
     section, click
    Devices
    .
  3. On the
    Devices
     screen, click the
    Mass Devices
     tab.
  4. Click
    Indoor Fire Panel
    .
  5. On the
    Indoor Fire Panel
     page, click
    Edit
    .
  6. Optionally, in the
    Details
     section, update the
    Name
     and
    Common Name
     fields.
  7. Optionally, select a value from the
    Device Group Order
     menu.
  8. Optionally, select a value from the
    Contact Info Edit
     menu. The available options are
    All
    ,
    End Users
    ,
    Operators
    , or
    None
    .
  9. Optionally, in the
    Help Text
     section, update the
    Targeting Help Text
    ,
    Contact Info Help Text
    , and
    Contact Info Tool Tip
     fields.

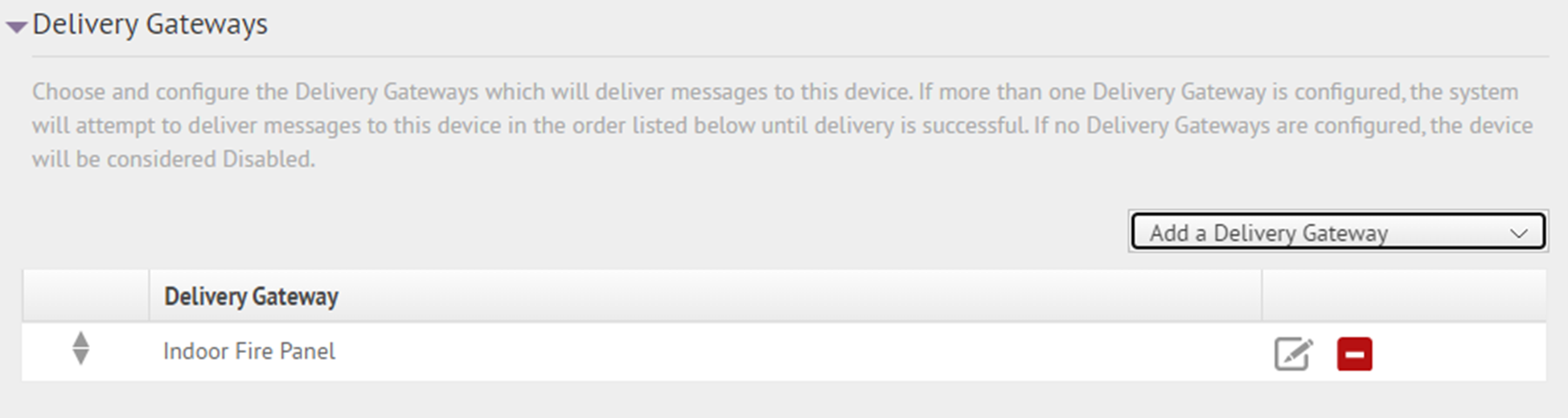

  10. In the
    Delivery Gateways
     section, click
    Add a Delivery Gateway
     >
    Indoor Fire Panel
    .
    Add a delivery gateway
  11. In the
    Indoor Fire Panel
     row, click The Edit icon.
  12. On the
    Configure Gateway
     window, check for XML code in the
    Configuration XML
     field. If the XML statements are not provided, copy and paste the following code into the text field:
    <Configuration>
             <CapParams>
              <GVSystemType>INFP</GVSystemType>
              <AllMode>0</AllMode>
              <ZoneMode>0</ZoneMode>
              <PoleMode>0</PoleMode>
              <KeyMode>0</KeyMode>
              <UnusedMode>0</UnusedMode>
              <DefaultAllCall>0</DefaultAllCall>
              <DefaultKeyActivationCode>0</DefaultKeyActivationCode>
              <NoPARequired>0</NoPARequired>
              <PARequired>1</PARequired>
              <IsCancelable>false</IsCancelable>
              <ContentSource>Indoor-Fire-Panel</ContentSource>
             </CapParams>
            </Configuration>
  13. Click
    Submit
    .
  14. Click
    Save
    .
  15. Click
    More Actions
     >
    Enable
    .
The status line at the top of the screen updates and indicates that the device is enabled.
