Verify the CapCon system activity console (GUI)

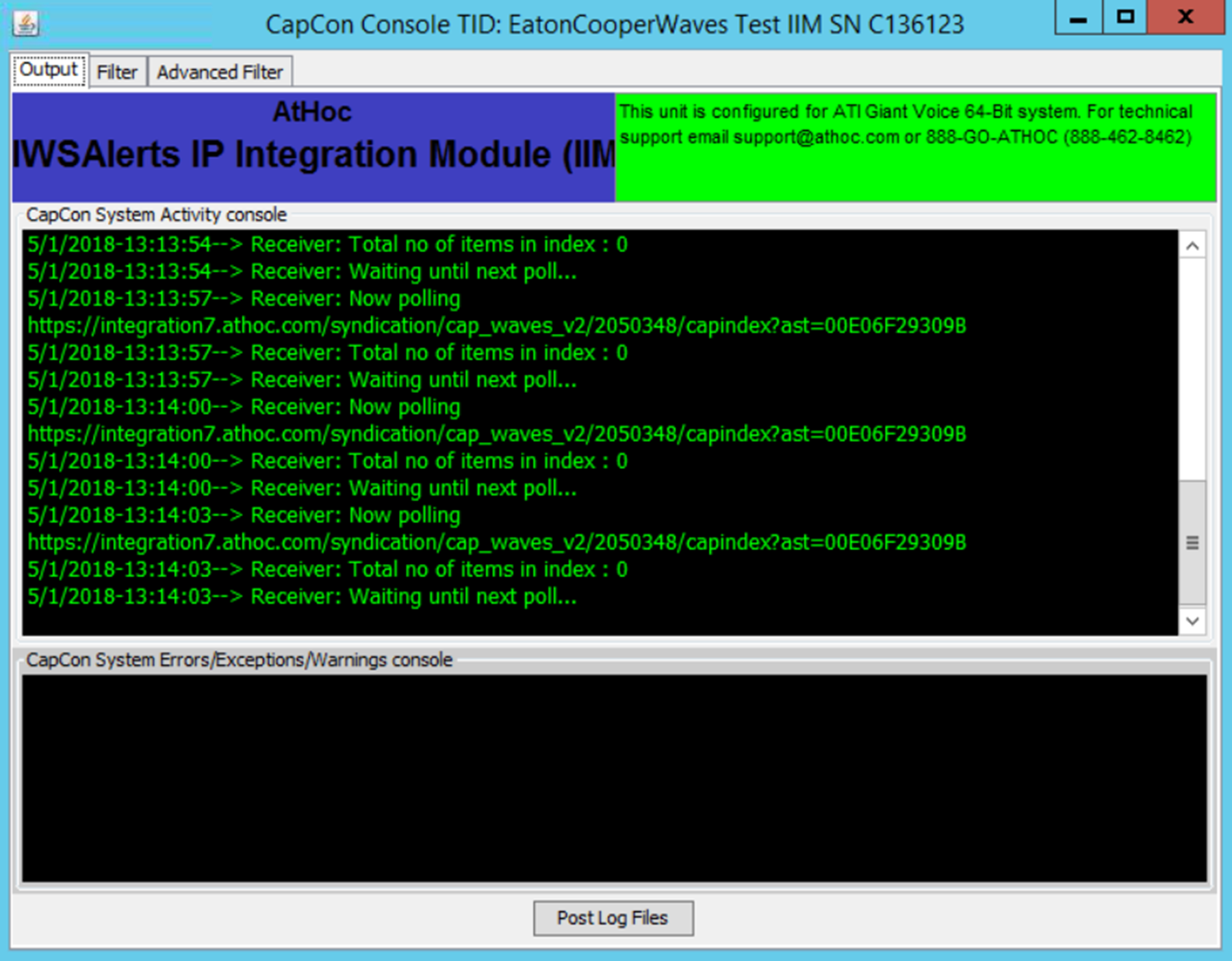

  1. Log in to the IIM console as an administrator. The CapCon Console loads automatically.
    The data in the CapCon System Activity console polls at the rate set by the
    delayBetweenRXpolls
     variable in the
    system_private.config
     file. The default is set to 3 seconds. A message indicates the total number of items in the index. The index number is the number of active alerts on the BlackBerry AtHoc system at that time.
  2. Verify that the IIM console does not show any new errors.
    The IIM console
  3. Verify that the console icon in the task tray appears green, indicating that the connectivity between the IIM and the BlackBerry AtHoc Alerts system is good.
    Green icon in the task tray
