Configure the system_private.config file

Open Microsoft Notepad as an administrator.

Click

File

 >

Open

.

Navigate to

C:\Program Files\capnode

 and change the file selection from “Text Documents (*.txt)” to “All Files (*.*)”.

Select the

system_private.config

 file.

Click

Open

.

Verify the following items in the

system_private.config

 file:

The
indexURL

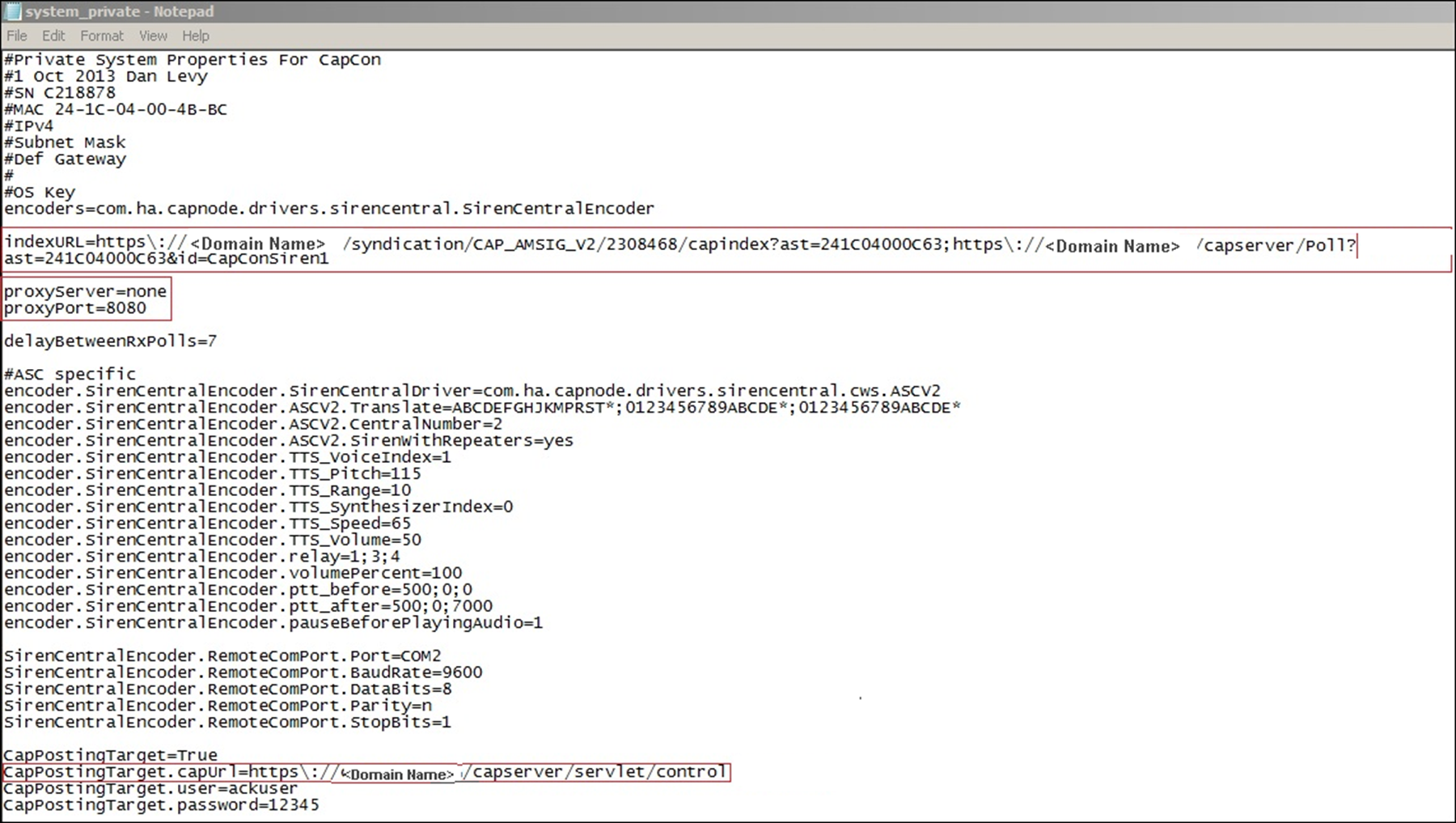

 variable should be formatted similar to the following image.
The base URL should be followed by “/syndication/”, then the device gateway protocol ID (for example, CAP_AMSIG_V2 for an American Signal Giant Voice system), the organization ID number, followed by "/capindex".
The “#” at the beginning of a line in the
system_private.config
 file is used to comment out an unused line. The “#” should be removed from a line to use the variable.

Enter the proxy server and proxy port information you collected earlier in the proxyServer and proxyPort parameters. If the settings on the computer that you tested with is set for “Automatic” in the proxy settings, the settings for those two lines display as follows:

proxyServer=none
proxyPort=8080

Update the

CapPostingTarget

 variables to reflect the correct URL using the same base URL as in the

indexURL

 variable.

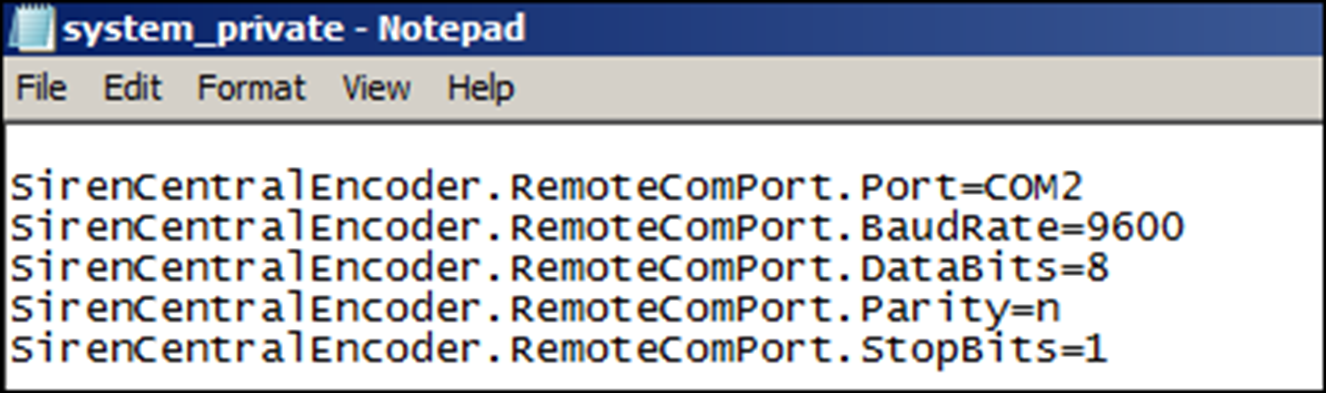

The American Signal COM Port settings displayed in the following image are default values and should not be changed.

Change the

encoder.SirenCentralEncoder.ASCV.Translate

 variable to match the section bolded in Create a mass device key endpoint.

Change the

encoder.SirenCentralEncoder.ASCV2.CentralNumber

 variable to match the CSC960 address listed in Swap the CSC960 encoder.

Click

File

 >

Save

.

Close the

system_private.config

 file.
