Configure BlackBerry AtHoc IIM health indication

Prerequisite
The IIM indexURL variable in the
system_private.config
 file needs to have the <MAC address> extension.
Verify the following before you configure the IIM health monitor in the BlackBerry AtHoc management system:

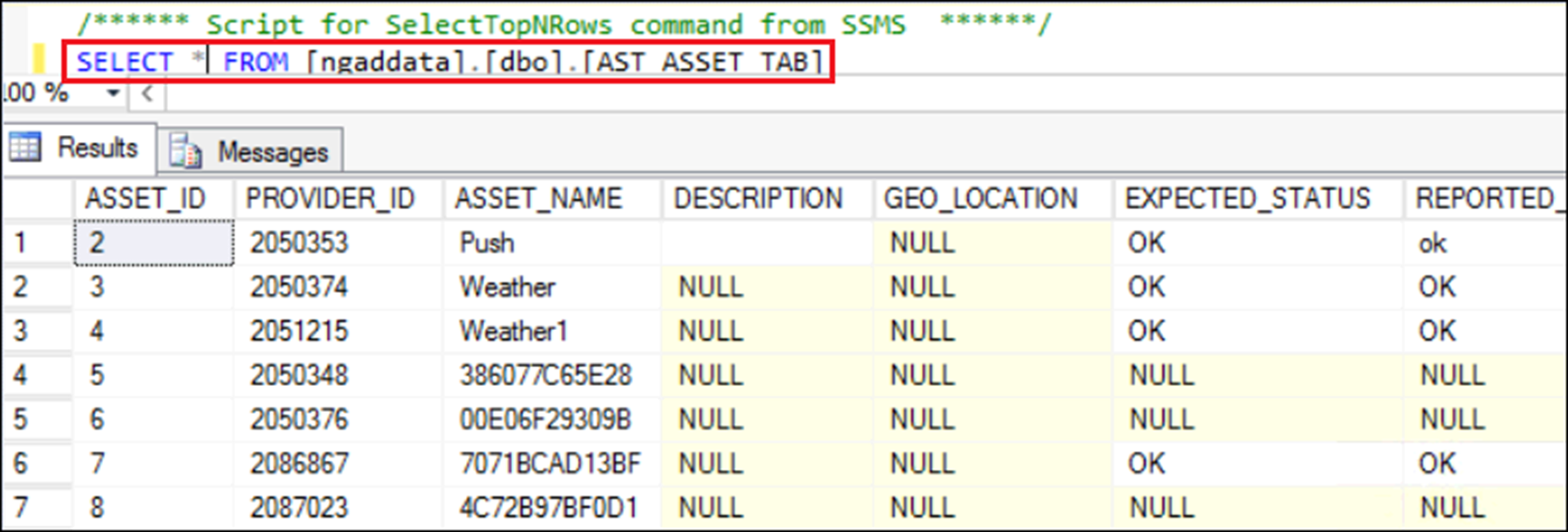

  1. In the
    Asset
     tab, check the asset ID and execute the query highlighted in the following image:
    The Asset tab
  2. In the

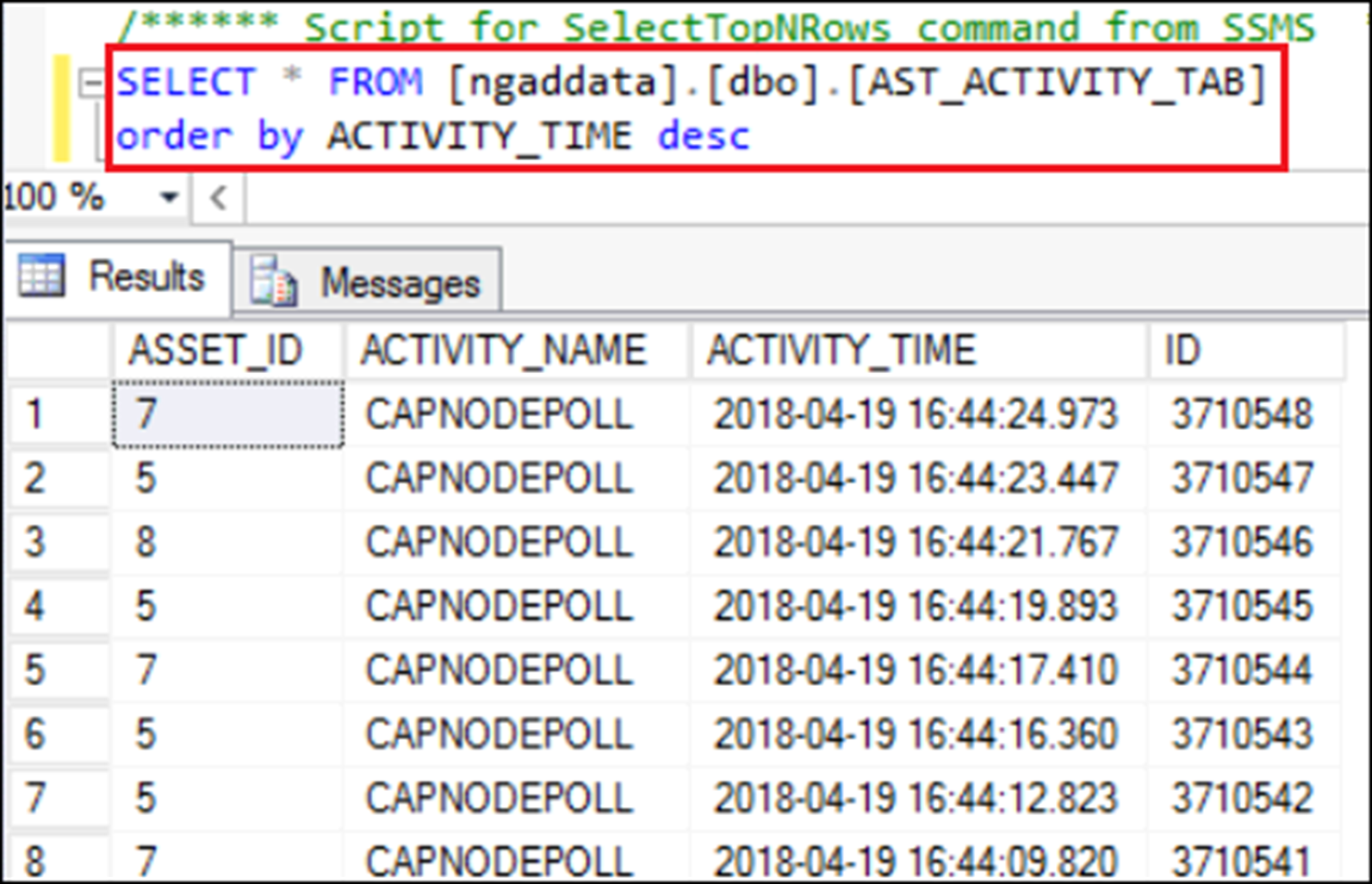

    Activity
     tab, check for the asset ID and its activities by executing the highlighted query in the following image:
    The Activity tab
  3. In
    SQL Server Management Studio
    , check if the stored procedure [dbo.mtr_iim_poll] is available in
    ngaddata
     >
    Programmability
     >
    Stored Procedure
    .
    Stored Procedure
USE [ngaddata]
GO
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
IF EXISTS(SELECT 1 FROM sys.procedures where object_id = object_id('dbo.mtr_iim_poll'))<A>column</A>
BEGIN
DROP PROCEDURE dbo.mtr_iim_poll
END
GO
CREATE PROCEDURE [dbo].[MTR_IIM_POLL]
@assetId int,
@interval int = 5
as
select count (1)  pollcount from [ngaddata].[dbo].[AST_ACTIVITY_TAB] where ASSET_ID = @assetId and
ACTIVITY_NAME = 'CAPNODEPOLL' and
ACTIVITY_TIME >=  DateAdd(MINUTE, -@interval, GETDATE())
end
go
  4. Right-click the
    dbo.mtr_iim_poll
     stored procedure.
  5. Click
    Execute stored procedure...
    .
  6. Specify the value for
    @assetId
     and
    @interval
    .
  7. Click
    OK
    .
