Add IIM device to ASSET_TAB

This section describes the steps to identify if the IIM device is not added to ASSET_TAB and how to add it to BlackBerry AtHoc management system.

To identify and add the IIM device to the ASSET_TAB, complete the following steps:

To validate if IIM device is configured at the organization level, run the following query to specify the provider_id (organization ID) in the query:

SELECT d.DEVICE_ID,
d.COMMON_NAME DEVICE_COMMON_NAME,
dg.COMMON_NAME GROUP_NAME FROM DLV_DEVICE_TAB d
INNER JOIN DLV_DEVICE_GROUP_TAB dg ON dg.GROUP_ID = d.GROUP_ID
INNER JOIN DLV_GATEWAY_DEVICE_GROUP_TAB gdg ON gdg.GROUP_ID = dg.GROUP_ID
INNER JOIN DLV_PRV_DEVICE_TAB dp ON dp.DEVICE_ID = d.DEVICE_ID
WHERE d.COMMON_NAME LIKE '<iim>'
AND dp.IS_ENABLED = 'Y'
AND dp.PROVIDER_ID = 3

To add the IIM device to the ASSET_TAB, open a new query window in the

SQL Server Management Studio

Run the following query and replace the required values:

USE[ngaddata]GOINSERT INTO[dbo].[AST_ASSET_TAB](ASSET_ID
    ,PROVIDER_ID
    ,ASSET_NAME
    ,DESCRIPTION
    ,GEO_LOCATION
    ,EXPECTED_STATUS
    ,REPORTED_STATUS
    ,VERSION
    ,NAME
)VALUES
    (7
    ,2087491
    ,'PUSH'
    ,NULL
    ,NULL
    ,NULL
    ,NULL
    ,NULL
        )
GO

Health Monitor is organization specific. Ensure that the mass device is configured with the organization you are using.

To configure the BlackBerry AtHoc organization home page IIM health indication, complete the following steps:

In the navigation bar, click The Settings icon

In the

System Setup

section, click

Global System Health

In the

General

section, click

IIM

In the

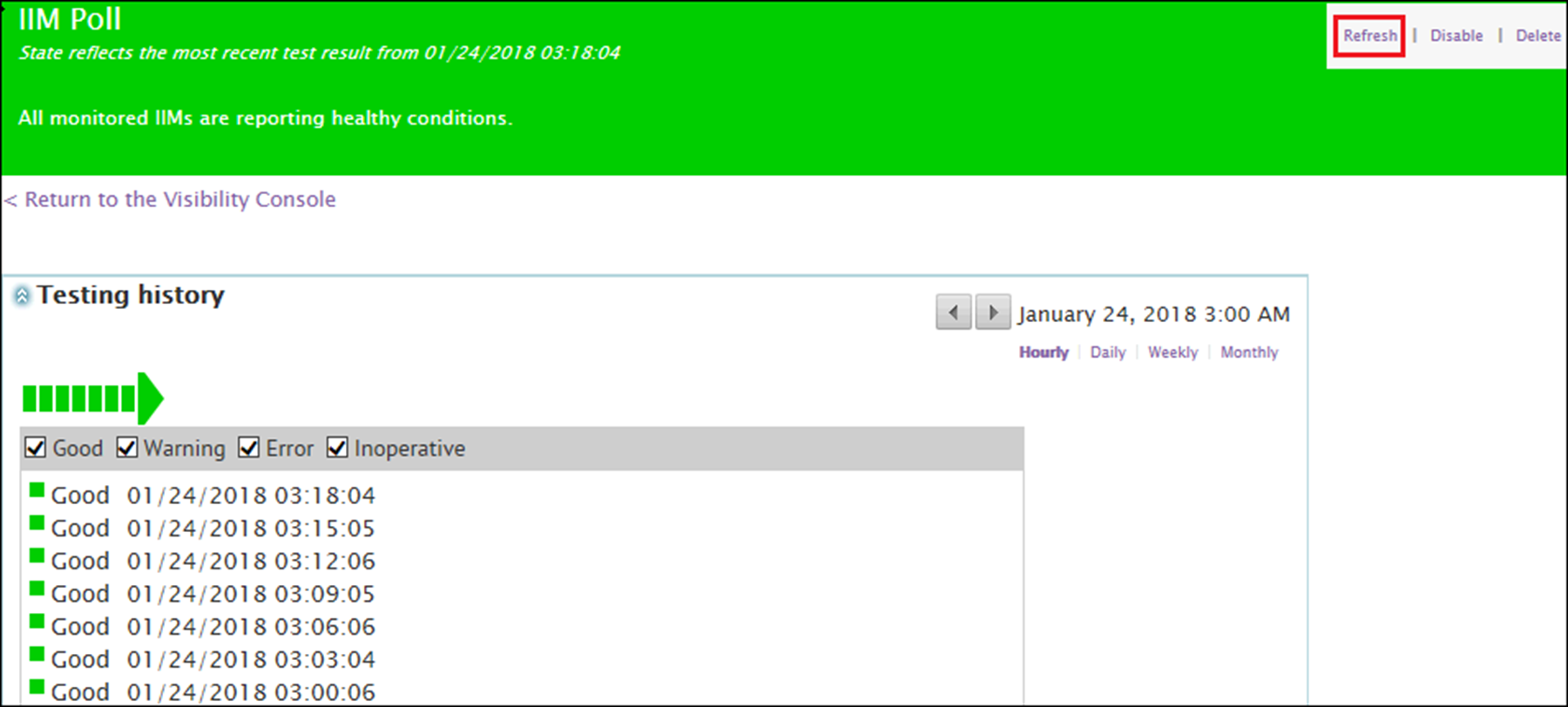

Testing history

section, the polling interval is displayed by state. There are four states: Error, Warning, Good, and Inoperative.

Optionally, if the polling stops, click

Refresh

for manual polling.

In the

Basic details

section, in the

How often does it check the status of the system?

section, set a polling duration.

In the

Database Procedure

section, in the

Test Configuration

field, add an asset ID and interval in stored procedure. The following is an example of a stored procedure:

<DatabaseProcedureTestConfig>
<Query> database.dbo.MTR_STORED_PROCEDURE_NAME @assetId=value,@interval=value</Query>
<WarningConditions />
<WarningCountThreshold>0</WarningCountThreshold>
<ErrorConditions>
<Condition>
<A>column</A>
<B>10</B>
<OffsetSeconds>0</OffsetSeconds>
<Comparison>LessThan</Comparison>
</Condition>
</ErrorConditions>
<ErrorCountThreshold>1</ErrorCountThreshold>
</DatabaseProcedureTestConfig>

In the

How is the state of this Health Monitor determined?

section, from the

Match the state if:

list, select a value to determine the health from the last run result. For example, if PollCount < 10, the monitor will go into an error state.

In the

What happens when this Health Monitor reaches a particular state?

section, in the

Configure Error State transition actions

section, click

Show a list of possible actions

On the

Health Actions

screen, click

<add this configuration

in the

Trigger a URL

Send an email

section.

Click

Save
